Pullback

Motivation.

In topos (1), we have defined what is subobject, in this section, we will define subobject functor via pullback square.

So what is pullback?

Consider

$$\begin{array}{}\text{(1)}& D_1\stackrel{d_1}{\to }{D}_3\stackrel{d_2}{\leftarrow }{D}_2\end{array}$$

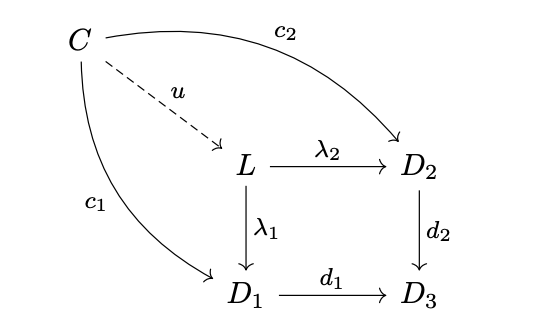

There exists a $L$$L$ such that for any $c_1:C\to D_1,c_2:C\to D_2$$c_1:C\to D_1,c_2:C\to D_2$ such that $d_1\circ c_1=d_2\circ c_2$$d_1\circ c_1=d_2\circ c_2$, there exists a unique $u$$u$ make the following diagram commute:

Or, $L$$L$ is the soulution of the universal map.

This is a limit or you can think it as a final object in a proper category.

Some times we call $L$$L$ fiber product as well. Since if you consider two fibers over a topological space $B$$B$

$$\begin{array}{}\text{(2)}& {\pi }_X:X\to B,{\pi }_Y:Y\to B\end{array}$$

Their product will be the fiber product of:

$$\begin{array}{}\text{(3)}& X\stackrel{{\pi }_X}{\to }B\stackrel{{\pi }_Y}{\leftarrow }Y\end{array}$$

Examples of pullback.

In $\mathrm{Set}$$\mathrm{Set}$, Let $d_1\circ c_1(c)=d_2\circ c_2(c)$$d_1\circ c_1(c)=d_2\circ c_2(c)$ for all $c\in C$$c\in C$, then $d_1(c_1(c))=d_2(c_2(c))$$d_1(c_1(c))=d_2(c_2(c))$ for all $c\in C$$c\in C$.

Hence $⟨c_1(c),c_2(c)⟩\in D_1\times D_2$$\langle c_1(c),c_2(c)\rangle\in D_1\times D_2$ satisfies that $d_1(c_1(c))=d_2(c_2(c))$$d_1(c_1(c))=d_2(c_2(c))$. Hence for all $(C,c_1,c_2)$$(C,c_1,c_2)$, it will universally path through $D_1{\times }_{D_3}{D}_2:=\{⟨x,y⟩\in D_1\times D_2|d_1(x)=d_2(y)\}$$D_1\times_{D_{3}} D_2:=\{\langle x,y\rangle\in D_1\times D_2|d_1(x)=d_2(y)\}$ via $u(c)=⟨c_1(c),c_2(c)⟩$$u(c)=\langle c_1(c),c_2(c)\rangle$​.

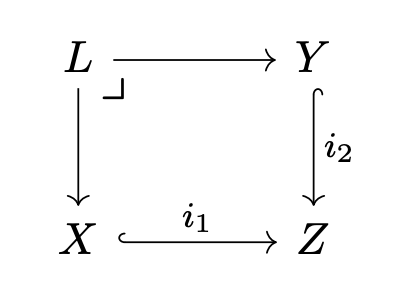

Consider the following diagram, where $i_1,i_2$$i_1,i_2$ are inclusion map.

Then $L=\{⟨x,y⟩\in X\times Y|i_1(x)=i_2(y)\}\cong X\cap Y.$$L=\{\langle x,y\rangle\in X\times Y|i_1(x)=i_2(y)\}\cong X\cap Y.$

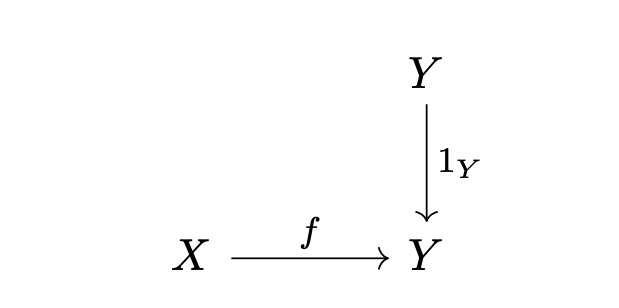

If we consider

Then $L=\{⟨x,y⟩|f(x)=y\}\cong f^{-1}(Y)$$L=\{\langle x,y\rangle|f(x)=y\}\cong f^{-1}(Y)$​

In general, if we consider the pullback of

$$\begin{array}{}\text{(4)}& X\stackrel{f}{\to }Y\stackrel{i}{\leftarrow }U\end{array}$$

Where $U\subseteq Y$$U\subseteq Y$ and $i$$i$ is the natural embedding. Then the result of pullback will be $f^{-1}(U)$$f^{-1}(U)$.

We will catch this idea later, and see how to use pullback to define subobject functor.

In $\mathrm{Ring}$$\mathrm{Ring}$, the pullback or fiber product exists.

Readers could check that

$$\begin{array}{}\text{(5)}& D_1{\times }_{D_3}{D}_2:=\{⟨x,y⟩\in D_1\times D_2|d_1(x)=d_2(y)\}\end{array}$$

is a subring of $D_1\times D_2$$D_1\times D_2$​.

Subobject functor and subobject classifier.

Proposition. Pulling back a monomorphism yields a monomorphism.

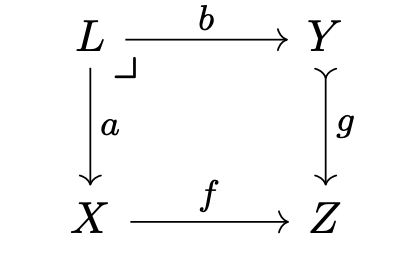

That is, let the following diagram be a pullback diagram, $(Y,g)$$(Y,g)$ is a subobject of $Z$$Z$ implies that $(L,a)$$(L,a)$ is a subobject of $X.$$X.$ i.e. Give you a morphism $f:X\to Z$$f:X\to Z$ and a subobject of $Z$$Z$, the pullback will gives you a subobject of $X$$X$. We will use this to define subobject functor.

Proof.

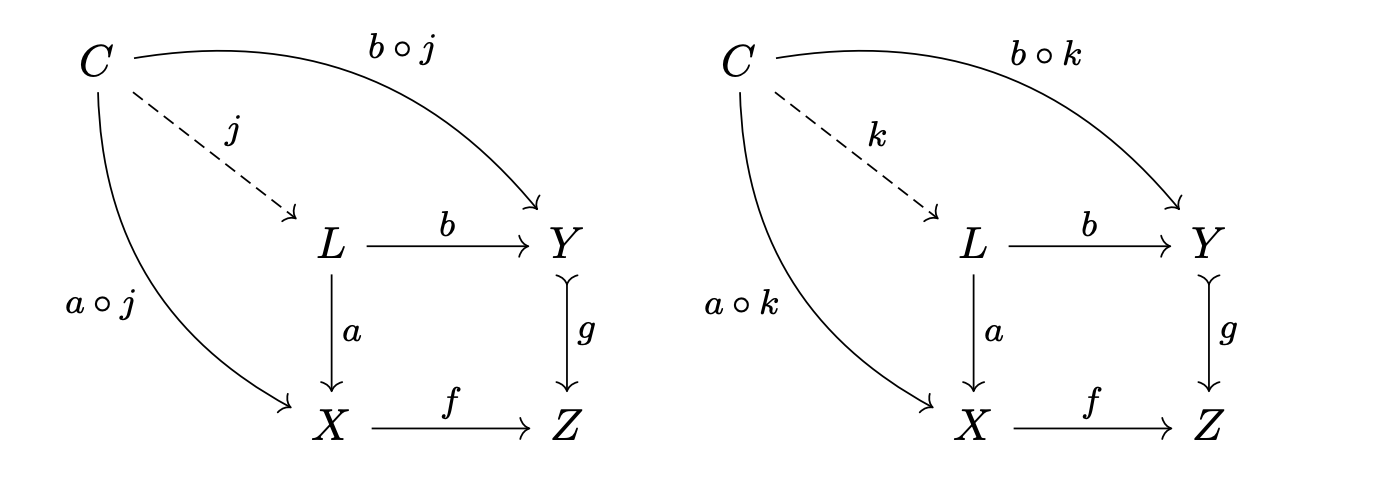

Consider $j,k:C\to L$$j,k:C\to L$ such that $a\circ j=a\circ k$$a\circ j=a\circ k$. We want to show that $j=k$$j=k$ via to show that $b\circ j=b\circ k$$b\circ j=b\circ k$.

If $b\circ j=b\circ k$$b\circ j=b\circ k$, then this two cone over $L$$L$ are same hence $j=k$$j=k$ since there exists a unique morphism such that the diagram commute by the definition of pullback.

We know that $g\circ b\circ j=f\circ a\circ j=f\circ a\circ k=g\circ b\circ k$$g\circ b\circ j=f\circ a\circ j=f\circ a\circ k=g\circ b\circ k$. Since $g$$g$ is mono,$b\circ j=b\circ k$$b\circ j=b\circ k$, hence $j=k$$j=k$, hence $a$$a$ is momo as well, hence $(L,a)$$(L,a)$ is a subobject of $X$$X$.$◻$$\square$

Subobject functor.

Let $\mathcal{C}$$\mathcal C$ be a category such that the pullback exists. Suppose that for any $A\in \mathrm{Ob}(\mathcal{C}),{\mathrm{Sub}}_{\mathcal{C}}(A)$$A\in\mathrm{Ob}(\mathcal C),\mathrm{Sub}_{\mathcal C}(A)$ is a set, we call $\mathcal{C}$$\mathcal C$ well powered category. Clearly $\mathrm{Set}$$\mathrm{Set}$ is well powered category.

Then we get a functor

$$\begin{array}{}\text{(6)}& {\mathrm{Sub}}_{\mathcal{C}}(-):{\mathcal{C}}^{\mathrm{op}}\to \mathrm{Set}\end{array}$$

For an object $Z$$Z$ in $\mathcal{C}$$\mathcal C$, it will be mapped to ${\mathrm{Sub}}_{\mathcal{C}}(Z)$$\mathrm{Sub}_{\mathcal C}(Z)$. For a morphism $f:X\to Z$$f:X\to Z$, the previous propositions shows us that the pullback will map each subobject $(Y,g)$$(Y,g)$ to a unique $(L,a)$$(L,a)$ (uo to isomorphism).

The map ${\mathrm{Sub}}_{\mathcal{C}}(f):{\mathrm{Sub}}_{\mathcal{C}}(Z)\to {\mathrm{Sub}}_{\mathcal{C}}(X)$$\mathrm{Sub}_{\mathcal C}(f):\mathrm{Sub}_{\mathcal C}(Z)\to\mathrm{Sub}_{\mathcal C}(X)$ is well defined. Let $(L^{\prime },a^{\prime })$$(L',a')$ be another pullback, then it will be isomorphic to $(L,a)$$(L,a)$ as a subobject.

Subobject classifier, the first definition.

If the functor ${\mathrm{Sub}}_{\mathcal{C}}(-)$$\mathrm{Sub}_{\mathcal C}(-)$ is representable, i.e. ${\mathrm{Sub}}_{\mathcal{C}}(-)\cong {\mathrm{Hom}}_{\mathcal{C}}(-,\mathrm{\Omega })$$\mathrm{Sub}_{\mathcal C}(-)\cong\mathrm{Hom}_{\mathcal C}(-,\Omega)$ then we say $\mathrm{\Omega }$$\Omega$​​​ is the subobject classifier.

Hence we have $X⟼{\mathrm{Hom}}_{\mathcal{C}}(X,\mathrm{\Omega }),(f:X\to Y)⟼f^{\ast }:{\mathrm{Hom}}_{\mathcal{C}}(Y,\mathrm{\Omega })\to {\mathrm{Hom}}_{\mathcal{C}}(X,\mathrm{\Omega })$$X\longmapsto \mathrm{Hom}_{\mathcal C}(X,\Omega),(f:X\to Y)\longmapsto f^*:\mathrm{Hom}_{\mathcal C}(Y,\Omega)\to\mathrm{Hom}_{\mathcal C}(X,\Omega)$.

This is interesting since we call $f^{\ast }$$f^*$ pullback as well.

The subobject classifier is unique up to isomorphism via Yoneda lemma.

Also, if $\mathcal{C}$$\mathcal C$ is locally small and ${\mathrm{Sub}}_{\mathcal{C}}(-)\cong {\mathrm{Hom}}_{\mathcal{C}}(-,\mathrm{\Omega })$$\mathrm{Sub}_{\mathcal C}(-)\cong\mathrm{Hom}_{\mathcal C}(-,\Omega)$, then $\mathcal{C}$$\mathcal C$ is well powered since ${\mathrm{Sub}}_{\mathcal{C}}(X)\cong {\mathrm{Hom}}_{\mathcal{C}}(X,\mathrm{\Omega })$$\mathrm{Sub}_{\mathcal C}(X)\cong\mathrm{Hom}_{\mathcal C}(X,\Omega)$​ is a set.

If we consider the Yoneda embedding $\mathcal{C}\to {\mathrm{Set}}^{{\mathcal{C}}^{\mathrm{op}}}$$\mathcal C\to\mathrm{Set}^{\mathcal C^{\mathrm{op}}}$, then the image of $\mathrm{\Omega }$$\Omega$ will be ${\mathrm{Hom}}_{\mathcal{C}}(-,\mathrm{\Omega })$$\mathrm{Hom}_{\mathcal C}(-,\Omega)$, hence ${\mathrm{Sub}}_{\mathcal{C}}(-)$$\mathrm{Sub}_{\mathcal C}(-)$​ is the subobject classifier of the image of the Yoneda embedding when the subobject classifier exists.

Example. As we know, when $\mathcal{C}=\mathrm{Set}$$\mathcal C=\mathrm{Set}$, the subobject functor is just the power set functor $P:{\mathrm{Set}}^{\mathrm{op}}\to \mathrm{Set}$$P:\mathrm{Set}^{\mathrm{op}}\to\mathrm{Set}$.

$$\begin{array}{}\text{(7)}& X\stackrel{f}{\to }Y\stackrel{i}{\leftarrow }U\end{array}$$

Where $U\subseteq Y$$U\subseteq Y$ and $i$$i$ is the natural embedding. Then the result of pullback will be $f^{-1}(U)$$f^{-1}(U)$.

The power set functor is represented by $\mathbb{Z}/2\mathbb{Z}$$\mathbb Z/2\mathbb Z$. i.e. ${\mathrm{Sub}}_{\mathrm{Set}}(-)\cong {\mathrm{Hom}}_{\mathrm{Set}}(-,\mathbb{Z}/2\mathbb{Z})$$\mathrm{Sub}_{\mathrm{Set}}(-)\cong\mathrm{Hom}_{\mathrm{Set}}(-,\mathbb Z/2\mathbb Z)$. Hence $\mathbb{Z}/2\mathbb{Z}$$\mathbb Z/2\mathbb Z$ is the object classifier in category of set. The elements in ${\mathrm{Hom}}_{\mathrm{Set}}(X,\mathbb{Z}/2\mathbb{Z})$$\mathrm{Hom}_{\mathrm{Set}}(X,\mathbb Z/2\mathbb Z)$ is the characteristic function. i.e. The subset of $X$$X$​​​ is one one corresponding to the characteristic function.

This lead to another equivalent definition of subobject classifier when the terminal object in $\mathcal{C}$$\mathcal C$​ exists.

Subobject classifier, the second definition.

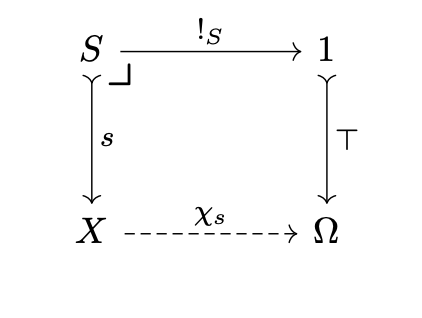

Definition. In a category $\mathcal{C}$$\mathcal C$ with a terminal object 1 and pullbacks, an object Ω and arrow $\top :1\rightarrowtail \Omega$$⊤: 1 ↣ Ω$ provide a subobject classifier $(\Omega ,\top )$$(Ω, ⊤)$ if and only if for any $(S,s:S\rightarrowtail X)$$(S, s: S ↣ X)$ there is a unique characteristic arrow ${\chi }_s:X\to \Omega$$\chi_s : X → Ω$ making this a pullback square:

In other word, the subobject $(S,s)$$(S,s)$ is represented by ${\chi }_s:X\to \mathrm{\Omega }$$\chi_s:X\to\Omega$.

Lemma. Let $1$$1$ be a terminal object in $\mathcal{C}$$\mathcal C$, then for any object $X$$X$, $\top :1\to X$$⊤:1\to X$ is monomorphism if the morphism exists.

Proof. Let $f,g:Y\to X$$f,g:Y\to X$ such that $\top \circ f=\top \circ g$$⊤\circ f=⊤\circ g$. Since $1$$1$ is the terminal object, $f=g$$f=g$. $◻$$\square$

We already saw two ways to define subobject classifier, when it will be equivalent?

The equivalence of two definitions.

Proposition. Let $\mathcal{C}$$\mathcal C$ be a locally small category with terminal object and pullback.

Then the two definitions of subobject classifier above are equivalent.

Proof.

Form to ${\mathrm{Sub}}_{\mathcal{C}}(-)\cong {\mathrm{Hom}}_{\mathcal{C}}(-,\mathrm{\Omega })$$\mathrm{Sub}_{\mathcal C}(-)\cong\mathrm{Hom}_{\mathcal C}(-,\Omega)$ is easy.

$$\begin{array}{}\text{(8)}& {\theta }_X:{\mathrm{Sub}}_{\mathcal{C}}(X)\to {\mathrm{Hom}}_{\mathcal{C}}(X,\mathrm{\Omega })\end{array}$$

is defined by

$$\begin{array}{}\text{(9)}& (S,s)⟼{\chi }_S\end{array}$$

it is injective since ${\chi }_S$$\chi_S$ is unique, it is surjective since give you a $\chi :X\to \mathrm{\Omega }$$\chi:X\to\Omega$​​, the pullback will gives you a subobject.

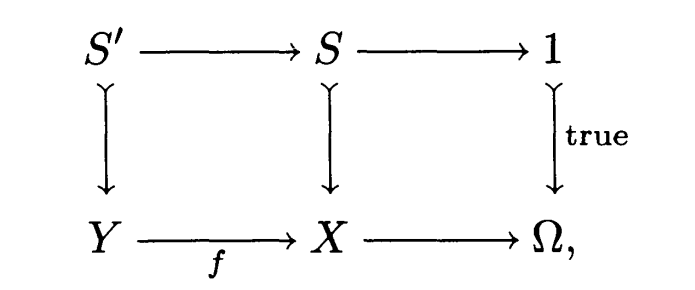

The corresonding in the morphism sides follows from this diagram directly.

The subobject $(S,s^{\prime })$$(S,s')$ correspond tp $f^{\ast }(\chi )=\chi \circ f$$f^*(\chi)=\chi\circ f$.

$$\begin{array}{}\text{(10)}& \begin{array}{c}\begin{array}{ccc}{\mathrm{Sub}}_{\mathcal{C}}(X)& \stackrel{{\theta }_X}{\to }& {\mathrm{Hom}}_{\mathcal{C}}(X,\mathrm{\Omega })\\ {\mathrm{Sub}}_{\mathcal{C}}(f)\downarrow & & {\mathrm{Hom}}_{\mathcal{C}}(X,f)\downarrow & \\ {\mathrm{Sub}}_{\mathcal{C}}(Y)& \stackrel{{\theta }_Y}{\to }& {\mathrm{Hom}}_{\mathcal{C}}(Y,\mathrm{\Omega })\end{array}\end{array}\end{array}$$

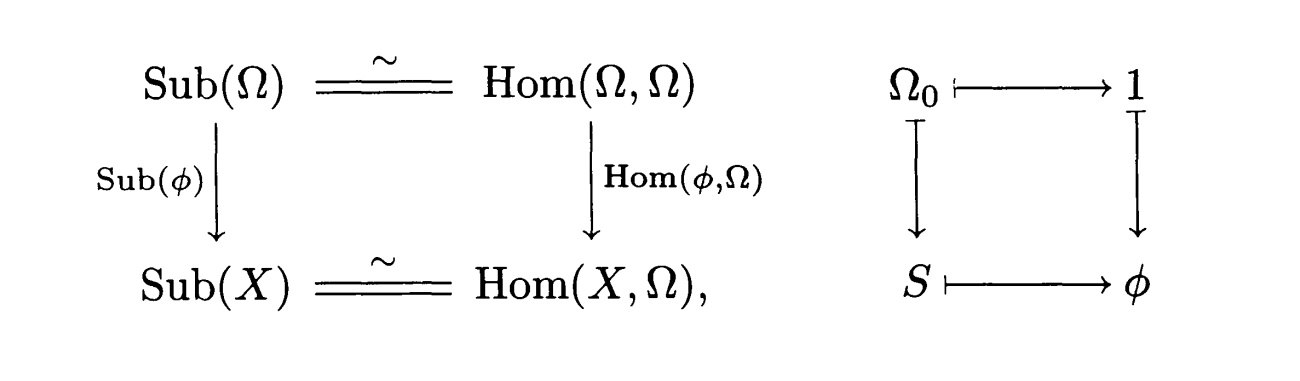

Conversely suppose that ${\mathrm{Sub}}_{\mathcal{C}}(-)\cong {\mathrm{Hom}}_{\mathcal{C}}(-,\mathrm{\Omega })$$\mathrm{Sub}_{\mathcal C}(-)\cong\mathrm{Hom}_{\mathcal C}(-,\Omega)$, then we have the following diagram

There exists a subobject $\mathrm{\Omega }$$\Omega$ correspond to ${\mathrm{id}}_{\mathrm{\Omega }}$$\mathrm{id}_{\Omega}$, we call it ${\mathrm{\Omega }}_0$$\Omega_0$ and $S={\mathrm{Sub}}_{\mathcal{C}}(\varphi )({\mathrm{\Omega }}_0)$$S=\mathrm{Sub}_{\mathcal C}(\phi)(\Omega_0)$, i.e.

Since ${\theta }_X$$\theta_X$ is natural isomorphism, the $\varphi$$\phi$ here is unique.

Now we only need to check that ${\mathrm{\Omega }}_0=1$$\Omega_0=1$​ is the terminal object.

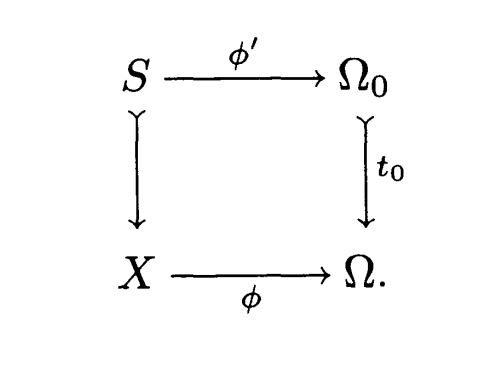

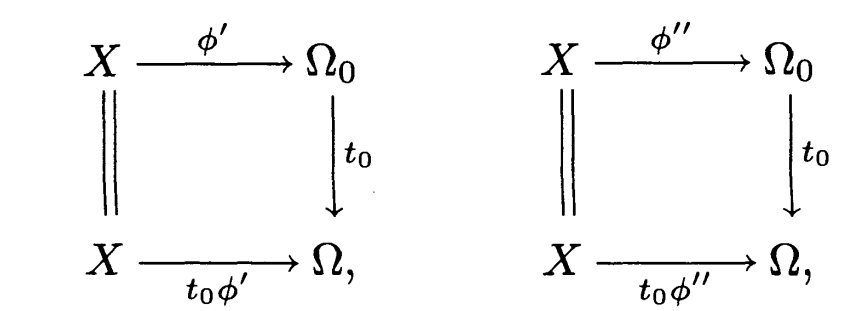

Let $X$$X$ be arbitrary object and clearly there exists some morphism via this pullback.

By the uniqueness of $\varphi :X\to \mathrm{\Omega }$$\phi:X\to\Omega$, we know that $t_0{\varphi }^{\prime }=t_0{\varphi }^{″}$$t_0\phi'=t_0\phi''$, but $t_0$$t_0$ is a monomorphism, hence ${\varphi }^{\prime }={\varphi }^{″}$$\phi'=\phi''$, hence for all $X$$X$ there exists a unique morphism from $X$$X$ to ${\mathrm{\Omega }}_0$$\Omega_0$, hence ${\mathrm{\Omega }}_0\cong 1$$\Omega_0\cong 1$. $◻$$\square$​

We will discuss more example in next section.
